KGHER 1.25x1.25 with 10pcs of MGMN400 Inserts

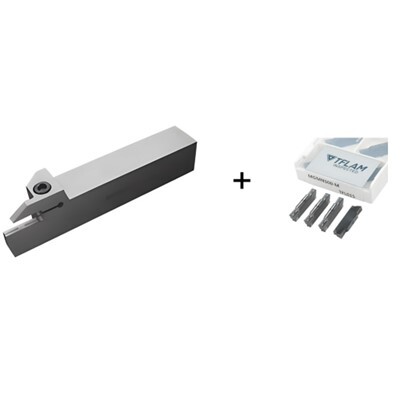

Heavy-Duty Grooving & Parting Kit: KGHER 1.25 x 1.25 with 10 MGMN400 Inserts
Unmatched Rigidity for Demanding Parting and Grooving Operations
Engineered for maximum stability, this professional KGHER kit combines an ultra-rigid square shank with robust MGMN400 inserts to tackle the toughest parting, face grooving, and deep grooving applications. Built to eliminate chatter and deflection, it delivers clean, accurate cuts in stainless steel, alloys, and other challenging materials.
Kit Includes:
1x KGHER Style Heavy-Duty Toolholder
Shank: 1.25 x 1.25 Inch Square – Provides maximum resistance to twisting and vibration.
Style: KGHER (Right-Hand, External Parting & Grooving)
Clamp: Top-Lock Screw with Integrated Anvil for rock-solid insert seating.
Construction: Premium alloy steel, hardened and precision ground.
10x MGMN200-Style Carbide Inserts
Size: MGMN400 – Larger cutting edge for superior strength and heat management.
Grade: High-performance uncoated carbide (Standard). Coated grades available for hardened materials and high-temperature alloys.
Chipbreaker: Optimized for controlled chip formation in parting and grooving.
Edges: 2 double-sided edges per insert (20 total edges).
Key Features & Benefits:
Eliminates Vibration: The massive square shank design ensures stability, preventing tool failure and poor surface finish.
Built for Heavy Cuts: Ideal for parting larger diameters, wide grooves, and aggressive feed rates where tool strength is non-negotiable.
Superior Chip Control: Geometry promotes tightly coiled, broken chips that evacuate safely from deep grooves.
Extended Tool Life: The larger MGMN300 insert provides more support behind the cutting edge, reducing chipping and wear.
Complete Ready-to-Run Kit: Get maximum uptime with a perfectly matched holder and a full set of inserts.
Technical Specifications
| Component | Specification | Details |
|---|---|---|
| Toolholder | Style | KGHER (Right-Hand) |
| Shank Size | 1.25 x 1.25 Inch Square | |
| Clamp Type | Top Screw, Fixed Anvil | |
| Insert | Designation | MGMN400 |
| Quantity | 10 Pieces | |
| Cutting Edges | 2 per insert | |
| Primary Use | Parting-Off, Heavy Grooving, Face Grooving |
Ideal Applications:
Parting-Off / Cut-Off (Medium to large bar stock)
Deep and Wide External Grooving
Face Grooving
O-Ring and Retention Grooves in tough materials
Heavy-Duty Plunge Turning
Compatible Materials:
Stainless Steels
Alloy & Tool Steels
Cast Iron
High-Temperature Alloys (with proper insert grade)
Nickel-Based Superalloys
The Professional's Choice for Heavy Cuts
This kit is the solution for machinists who demand rigidity and reliability. It replaces underpowered tooling with industrial-strength performance, allowing you to increase feeds, depths of cut, and overall productivity with confidence.
Upgrade to heavy-duty performance. Add to cart today.
