Lathe Sleeves

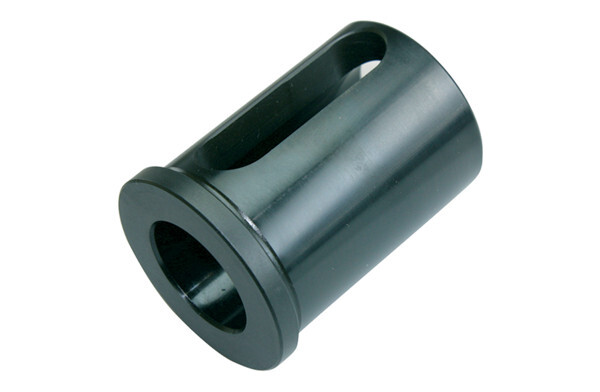

Precision Lathe Boring Bar Sleeves: Rigid Support for Superior Finishes
Product Overview
Achieve ultimate rigidity, minimize vibration, and unlock the full potential of your boring bars with our premium lathe boring bar sleeves. These precision-engineered adapters securely hold round-shank boring bars, transforming your standard tool post into a high-performance boring system. Perfect for deep hole boring, internal turning, and achieving exceptional surface finishes where deflection is the enemy.
Key Features & Benefits
Eliminate Deflection & Chatter: Our thick-walled, heat-treated steel sleeves provide maximum support along the entire bar length, dramatically increasing rigidity for smoother cuts, better accuracy, and improved tool life.
Universal Compatibility: Instantly adapt round-shank boring bars (common in modern carbide insert systems) to fit square or rectangular tool posts. No need for expensive, dedicated boring tool holders.
Precision Ground for Perfect Alignment: Sleeves are precision ground on all critical surfaces (O.D. and bore) to ensure concentricity and parallel alignment with the lathe axis, guaranteeing accurate bore geometry.
Secure Locking Design: Features a robust sidelock clamping screw (or set screws) that exerts powerful, even pressure to lock the boring bar without causing distortion or slippage, even under heavy cuts.
Cost-Effective Tooling Solution: Expand your boring capabilities without purchasing multiple dedicated holders. One quality sleeve accommodates an entire range of round shank bars of the same diameter.
Heavy-Duty Construction: Made from high-grade alloy steel, hardened and ground for wear resistance and long-term durability in demanding workshop environments.
Product Specifications & Selection
Material: High-Grade Alloy Steel, Heat Treated & Precision Ground.
Finish: Black Oxide or Phosphate coating for corrosion resistance.
Clamping Type: Sidelock with Cap Screw or Dual Set Screws.
Common Sizes (Typical Range):
Holder Shank (Tool Post Side): 3/4", 1", 1-1/4", 1-1/2" Square or Rectangle.
Bore (Bar Side): 3/8", 1/2", 5/8", 3/4", 1", 1-1/4" Diameter.
Length: 3", 4", 5", 6" (Common lengths to support various bar projections).
How to Choose the Right Sleeve:
Measure Your Tool Post: Determine the exact size (e.g., 1" square) of the opening in your quick-change or lantern tool post.
Measure Your Boring Bars: Identify the shank diameter of the round boring bars you need to support.
Select the Sleeve: Choose the sleeve where the outer shank size matches your tool post and the inner bore size matches your boring bar.
Ideal For:
Machinists & Toolmakers needing reliable, rigid boring setups.
Maintenance & Repair Shops performing occasional boring operations.
Hobbyists & Model Engineers upgrading their lathe tooling for better results.
Job Shops looking for flexible, space-saving tooling solutions.
Applications: Deep hole boring, internal grooving, finishing bores to tight tolerances, and any operation where bar vibration leads to poor surface finish or tool failure.
What’s in the Box?
1x Precision Boring Bar Sleeve
1x High-Quality Clamping Screw & Washer (if applicable)
Upgrade Your Boring Today! Stop fighting chatter and inaccuracy. Add professional-grade rigidity to your lathe with our boring bar sleeves. Browse our size chart to find the perfect match for your tool post and bar collection.
