Gear Hobs/Broaching Tools

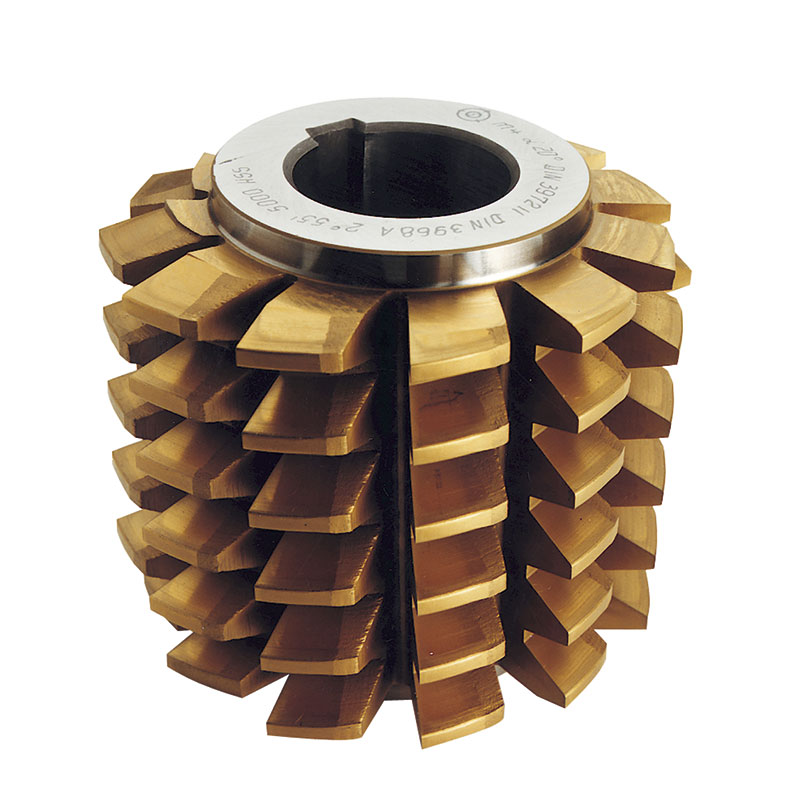

GEAR HOB 20° PRESSURE ANGLE(Module = 1.25 Diameter = 50mm Length = 31mm Hole = 22mm)

GEAR HOB 20° PRESSURE ANGLE

$390.00

Add to Cart

GEAR HOB 20° PRESSURE ANGLE(Module = 1.75 Diameter = 56mm Length = 38mm Hole = 22mm)

GEAR HOB 20° PRESSURE ANGLE

$390.00

Add to Cart

GEAR HOB 20° PRESSURE ANGLE(Module = 2.00 Diameter = 63mm Length = 46mm Hole = 27mm)

GEAR HOB 20° PRESSURE ANGLE

$402.48

Add to Cart

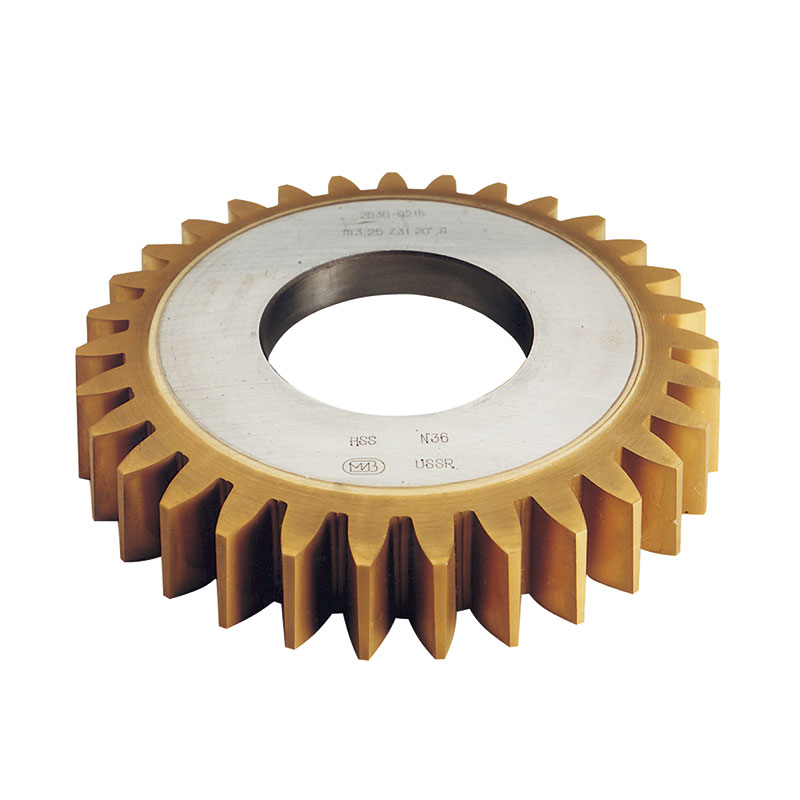

DISC TYPE GEAR SHAPER CUTTER(Nominal ø 100 mm hole 44,45 mm 20° angle pressure class A)

GEAR HOB 20° PRESSURE ANGLE(Module = 2.25 Diameter = 70mm Length = 56mm Hole = 27mm)

GEAR HOB 20° PRESSURE ANGLE

$464.88

Add to Cart

GEAR HOB 20° PRESSURE ANGLE(Module = 2.50 Diameter = 71mm Length = 63mm Hole = 27mm)

GEAR HOB 20° PRESSURE ANGLE

$464.88

Add to Cart

GEAR HOB 20° PRESSURE ANGLE(Module = 2.75 Diameter = 70mm Length = 56mm Hole = 27mm)

GEAR HOB 20° PRESSURE ANGLE

$464.88

Add to Cart

GEAR HOB 20° PRESSURE ANGLE(Module = 3.0 Diameter = 80mm Length = 71mm Hole = 32mm)

GEAR HOB 20° PRESSURE ANGLE

$566.28

Add to Cart

DISC TYPE GEAR SHAPER CUTTER - Nominal ø 100 mm hole 44,45 mm 20° angle pressure class A(Module = 1 ømax = 102mm ød0 = 100mm Height b1 = 16mm Teeth = 100)

$340.64

Add to Cart

DISC TYPE GEAR SHAPER CUTTER - Nominal ø 100 mm hole 44,45 mm 20° angle pressure class A(Module = 1.25 ømax = 105mm ød0 = 100mm Height b1 = 16mm Teeth = 80)

$340.64

Add to Cart

DISC TYPE GEAR SHAPER CUTTER - Nominal ø 100 mm hole 44,45 mm 20° angle pressure class A(Module = 1.50 ømax = 107mm ød0 = 102mm Height b1 = 18mm Teeth = 68)

$345.71

Add to Cart

DISC TYPE GEAR SHAPER CUTTER - Nominal ø 100 mm hole 44,45 mm 20° angle pressure class A(Module = 1.75 ømax = 107.4mm ød0 = 101.5mm Height b1 = 20mm Teeth = 58)

$400.17

Add to Cart

DISC TYPE GEAR SHAPER CUTTER - Nominal ø 100 mm hole 44,45 mm 20° angle pressure class A(Module = 2.0 ømax = 107.31mm ød0 = 100mm Height b1 = 20mm Teeth = 50)

$400.17

Add to Cart

DISC TYPE GEAR SHAPER CUTTER - Nominal ø 100 mm hole 44,45 mm 20° angle pressure class A(Module = 2.25 ømax = 109.29mm ød0 = 101.25mm Height b1 = 20mm Teeth = 45)

$400.17

Add to Cart

DISC TYPE GEAR SHAPER CUTTER - Nominal ø100 mm hole 44,45 mm 20° angle pressure class A(Module = 2.5 ømax = 108.46mm ød0 = 100mm Height b1 = 20mm Teeth = 40)

$458.05

Add to Cart

DISC TYPE GEAR SHAPER CUTTER - Nominal ø100 mm hole 44,45 mm 20° angle pressure class A(Module = 2.75 ømax = 108.36mm ød0 = 99.0mm Height b1 = 24mm Teeth = 36)

$458.05

Add to Cart

DISC TYPE GEAR SHAPER CUTTER - Nominal ø100 mm hole 44,45 mm 20° angle pressure class A(Module = 3.0 ømax = 111.82mm ød0 = 99.0mm Height b1 = 24mm Teeth = 33)

$458.05

Add to Cart

DISC TYPE GEAR SHAPER CUTTER - Nominal ø100 mm hole 44,45 mm 20° angle pressure class A(Module = 3.25 ømax = 110.99mm ød0 = 99.0mm Height b1 = 24mm Teeth = 31)

$502.69

Add to Cart

DISC TYPE GEAR SHAPER CUTTER - Nominal ø100 mm hole 44,45 mm 20° angle pressure class A(Module = 3.50 ømax = 108.72mm ød0 = 101.50mm Height b1 = 24mm Teeth = 29)

$502.69

Add to Cart

DISC TYPE GEAR SHAPER CUTTER - Nominal ø100 mm hole 44,45 mm 20° angle pressure class A(Module = 3.75 ømax = 112.35mm ød0 = 101.50mm Height b1 = 24mm Teeth = 27)

$502.69

Add to Cart

DISC TYPE GEAR SHAPER CUTTER - Nominal ø100 mm hole 44,45 mm 20° angle pressure class A(Module = 4.0 ømax = 111.75mm ød0 = 100mm Height b1 = 24mm Teeth = 25)

$502.69

Add to Cart

DISC TYPE GEAR SHAPER CUTTER - Nominal ø100 mm hole 44,45 mm 20° angle pressure class A(Module = 4.25 ømax = 114.12mm ød0 = 102mm Height b1 = 24mm Teeth = 24)

$500.04

Add to Cart

DISC TYPE GEAR SHAPER CUTTER - Nominal ø100 mm hole 44,45 mm 20° angle pressure class A(Module = 4.50 ømax = 111.65mm ød0 = 99.0mm Height b1 = 24mm Teeth = 22)

$500.04

Add to Cart

DISC TYPE GEAR SHAPER CUTTER - Nominal ø100 mm hole 44,45 mm 20° angle pressure class A(Module = 5.0 ømax = 114.05mm ød0 = 100mm Height b1 = 24mm Teeth = 20)

$500.04

Add to Cart

DISC TYPE GEAR SHAPER CUTTER - Nominal ø100 mm hole 44,45 mm 20° angle pressure class A(Module = 5.5 ømax = 119.96mm ød0 = 99.0mm Height b1 = 24mm Teeth = 18)

$578.76

Add to Cart

DISC TYPE GEAR SHAPER CUTTER - Nominal ø100 mm hole 44,45 mm 20° angle pressure class A(Module = 6.0 ømax = 118.86mm ød0 = 102mm Height b1 = 24mm Teeth = 17)

$578.76

Add to Cart

DISC TYPE GEAR SHAPER CUTTER - Nominal ø100 mm hole 44,45 mm 20° angle pressure class A(Module = 6.50 ømax = 122.50mm ød0 = 112mm Height b1 = 24mm Teeth = 16)

$725.93

Add to Cart

DISC TYPE GEAR SHAPER CUTTER - Nominal ø100 mm hole 44,45 mm 20° angle pressure class A(Module = 7.0 ømax = 127.0mm ød0 = 105.0mm Height b1 = 24mm Teeth = 15)

$844.99

Add to Cart

DISC TYPE GEAR SHAPER CUTTER - Nominal ø100 mm hole 44,45 mm 20° angle pressure class A(Module = 8.0 ømax = 135.0mm ød0 = 102.0mm Height b1 = 24mm Teeth = 14)

$949.17

Add to Cart

DISC TYPE GEAR SHAPER CUTTER - Nominal ø100 mm hole 44,45 mm 20° angle pressure class A(Module = 10.0 ømax = 168.0mm ød0 = 140.0mm Height b1 = 24mm Teeth = 14)

$1,299.73

Add to Cart

GEAR HOB 20° PRESSURE ANGLE(Module = 1.00 Diameter = 50mm Length = 31mm Hole = 22mm)

$377.02

Add to Cart

GEAR HOB 20° PRESSURE ANGLE(Module = 3.25 Diameter = 80mm Length = 69mm Hole = 32mm)

$594.19

Add to Cart

GEAR HOB 20° PRESSURE ANGLE(Module = 3.50 Diameter = 80mm Length = 71mm Hole = 32mm)

$661.44

Add to Cart

GEAR HOB 20° PRESSURE ANGLE(Module = 3.75 Diameter = 90mm Length = 78mm Hole = 32mm)

$758.16

Add to Cart

GEAR HOB 20° PRESSURE ANGLE(Module = 4.0 Diameter = 90mm Length = 78mm Hole = 32mm)

$758.16

Add to Cart

GEAR HOB 20° PRESSURE ANGLE(Module = 4.25 Diameter = 90mm Length = 78mm Hole = 32mm)

$826.80

Add to Cart

GEAR HOB 20° PRESSURE ANGLE(Module = 4.50 Diameter = 90mm Length = 78mm Hole = 32mm)

$826.80

Add to Cart

GEAR HOB 20° PRESSURE ANGLE(Module = 5.0 Diameter = 100mm Length = 88mm Hole = 32mm)

$826.80

Add to Cart

GEAR HOB 20° PRESSURE ANGLE(Module = 5.50 Diameter = 100mm Length = 88mm Hole = 32mm)

$826.80

Add to Cart

GEAR HOB 20° PRESSURE ANGLE(Module = 6.0 Diameter = 110mm Length = 108mm Hole = 40mm)

$1,091.38

Add to Cart

GEAR HOB 20° PRESSURE ANGLE(Module = 6.50 Diameter = 110mm Length = 109mm Hole = 40mm)

$1,095.12

Add to Cart

GEAR HOB 20° PRESSURE ANGLE(Module = 7.0 Diameter = 110mm Length = 110mm Hole = 40mm)

$1,095.12

Add to Cart

GEAR HOB 20° PRESSURE ANGLE(Module = 8.0 Diameter = 130mm Length = 125mm Hole = 40mm)

$1,722.24

Add to Cart

GEAR HOB 20° PRESSURE ANGLE(Module = 9.0 Diameter = 125mm Length = 140mm Hole = 40mm)

$1,956.24

Add to Cart

GEAR HOB 20° PRESSURE ANGLE(Module = 10.0 Diameter = 140mm Length = 160mm Hole = 40mm)

$2,639.52

Add to Cart

GEAR HOB 20° PRESSURE ANGLE(Module = 12.0 Diameter = 170mm Length = 195mm Hole = 50mm)

$3,790.80

Add to Cart

GEAR HOB 20° PRESSURE ANGLE(Module = 13.0 Diameter = 180mm Length = 210mm Hole = 50mm)

$3,987.36

Add to Cart

CT16-10mm+0.1

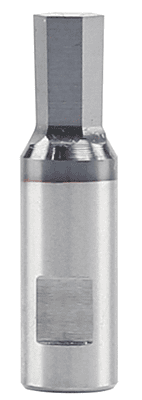

ROTARY BROACHING TOOL PUNCHING CUTTERS

(Fixed Shank Diameter: 8.0 mm for All Sizes)

Standard Specifications:

Material: High-Speed Steel (HSS) / Carbide-Tipped
Shank Type: Hex / Round (for rotary broaching)
Finish: Precision Ground
Coating: TiN / TiCN (Optional)
Tolerance: ±0.005 mm

$39.52

Add to Cart

CT16-11mm+0.1

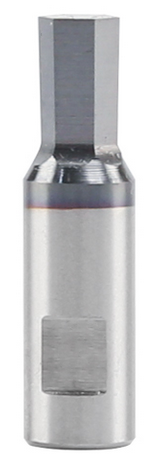

ROTARY BROACHING TOOL PUNCHING CUTTERS

(Fixed Shank Diameter: 8.0 mm for All Sizes)

Standard Specifications:

Material: High-Speed Steel (HSS) / Carbide-Tipped
Shank Type: Hex / Round (for rotary broaching)
Finish: Precision Ground
Coating: TiN / TiCN (Optional)
Tolerance: ±0.005 mm

$39.52

Add to Cart
