Product Description

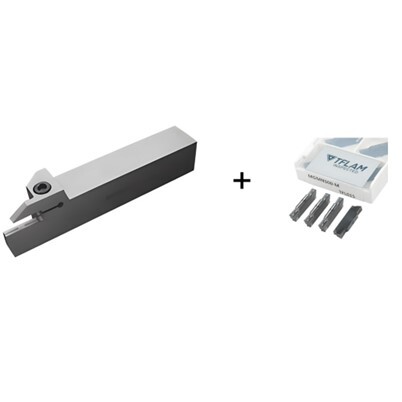

KGHER 1.00 x 1.00 Inch Grooving & Parting Kit - Complete High-Performance Solution
Maximize efficiency and achieve flawless cuts with the KGHER 1.00x1.00 Grooving Kit. This complete package provides everything you need for precise grooving, parting-off, and shoulder turning operations on CNC lathes and manual machines. Engineered for rigidity and easy setup, it's the ideal choice for maintenance shops, job shops, and high-volume production environments.
Kit Includes:
1x KGHER 1.00 Inch Grooving Holder: Solid, precision-ground steel body with a 1.00" (25.4mm) shank height and width. Features a reliable screw-down clamp mechanism for secure insert seating and easy indexing.
10x MGMN300-Style Inserts: Industry-standard MGMN300 (3mm wide) inserts. Please specify your preferred grade/coating (e.g., TiAlN, Uncoated Carbide, etc.) at checkout. The double-ended design provides 2 cutting edges per insert, for a total of 20 cutting edges in this kit.
Key Features & Benefits:
Complete Ready-to-Run Kit: Get started immediately—no need to source toolholder and inserts separately.
Superior Rigidity: The 1.00" x 1.00" shank and robust design minimize vibration and deflection, enabling deeper, more stable cuts and better surface finish.
Excellent Chip Control: The MGMN300 geometry promotes efficient chip formation and evacuation, reducing the risk of chip jamming in grooves.
Cost-Effective Productivity: The included 10 inserts (20 cutting edges) offer exceptional value, minimizing downtime for changes and reducing cost-per-part.
Wide Compatibility: Uses the widely available and affordable MGMN300 insert style, giving you maximum flexibility in material-specific grades from multiple manufacturers.
Technical Specifications:
Toolholder Model: KGHER
Shank Size: 1.00 inch x 1.00 inch (25mm x 25mm).
Insert Clamp: Screw-down clamp.
Cutting Direction: Right Hand.
Insert Included: MGMN300 (3mm wide groove/parting width).
Max Cutting Depth (Doc): Standard depth is determined by insert length (typically up to ~10mm). Consult insert packaging for exact specs.
Typical Applications:
Parting-off (cut-off) operations
O-ring, circlip, and retention grooves
Thread relief grooves
Precision face grooving
Turning and shoulder facing
Ordering Information:
This kit is sold as KGHER-1.00-MGMN300-KIT. Ensure your machine toolpost accepts a 1.00" x 1.00" shank toolholder.
Bullet Points for Product Highlights
✅ COMPLETE KIT: 1 Holder + 10 MGMN300 Inserts (20 Edges)
✅ 1 INCH SQUARE SHANK: For Maximum Rigidity & Stability
✅ FITS STANDARD TURRETS: Compatible with 1" x 1" Tool Posts
✅ SCREW-DOWN CLAMP: Secure & Easy Insert Changes
✅ VERSATILE: Ideal for Grooving, Parting, & Face Grooving
✅ COST-EFFECTIVE: Bulk Inserts Reduce Cost Per Edge
