Solid carbide end mill suitable for milling stainless steel, steels, and super alloys
$115.28
Customize
Grade and Coating

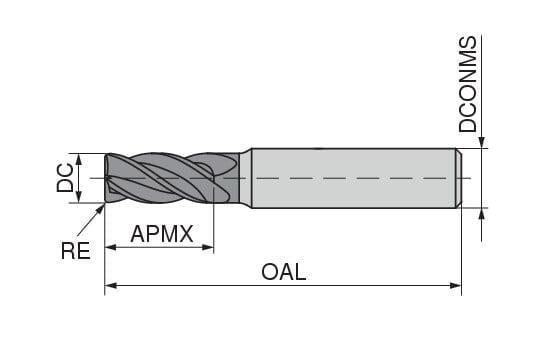

AlTiN Mounting spigot diameter / DCONMS - d 1 Dia
0.625 Overall length / OAL - L
3.50 Cutting diameter / DC
0.625 Depth of cut maximum / APMX - l 2 LOC
1.25 Peripheral effective cutting edge count / ZEFP - Flutes
4.00 Corner radius / RE / R
0.03 Product Details
Specifications

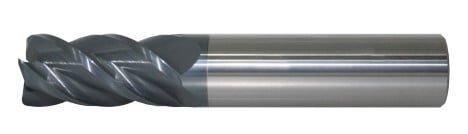

Solid Carbide End Mill
- Cutting diameter / DC:0.625
- Mounting spigot diameter / DCONMS - d 1 Dia:0.625
- Grade and Coating:AlTiN
- Peripheral effective cutting edge count / ZEFP - Flutes:4
- Depth of cut maximum / APMX - l 2 LOC:1.25
