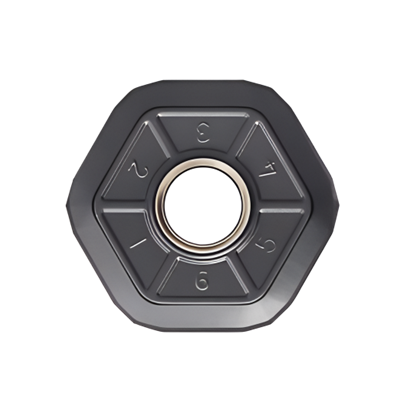

HNGX09 Series Double‑Sided 12‑Edge Face Mill Inserts
Overview
The HNGX09 series is a negative‑geometry hexagonal insert with 12 cutting edges (6 per side), designed for economical face milling. The double‑sided design doubles the usable edges per insert, and the 12‑edge count drastically reduces the cost per edge – ideal for high‑volume production. These ground inserts deliver excellent dimensional accuracy and consistency.
Key Benefits
12 edges per insert – 6 edges on each side, maximising insert utilisation and minimising tooling cost.
Three chipbreaker geometries – Available in F (finishing), M (general‑purpose), and R (roughing) grades to cover a wide range of machining conditions.
High‑precision ground – Ground surfaces ensure tight tolerances, stable cutting, and improved surface finish.
Wiper effect – Edge geometry designed for good surface quality and reduced machining marks.
Low cutting forces – Optimised rake and clearance angles provide sharp, free‑cutting action.
Versatile material compatibility – Works well with steel, stainless steel, cast iron, and more.
Specifications

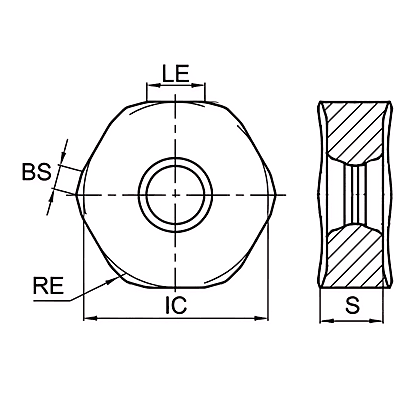

| Parameter | Value |
|---|---|
| Insert model | HNGX0906ANSN‑FF (example, finishing type) |
| Inscribed circle (IC) | 16.5 mm |
| Thickness (S) | 6.35 mm |
| Corner radius (RE) | 1.0 mm |
| Cutting edge length (L) | 5.3 mm |
| Wiper flat length (BS) | 1.13 mm |
| Insert type | Negative, hexagonal |
| Number of edges | 12 (double‑sided) |
Matching screw: M4.0‑003
Matching wrench: T15
Recommended Applications
Face milling
Square‑shoulder milling
Slotting
Chamfering
Important Notes
Use with NC45HX series cutter bodies for optimal performance.
Choose the chipbreaker (F / M / R) according to your workpiece material and machining stage.
Always fasten with M4.0‑003 screws and T15 wrench at the recommended torque.
