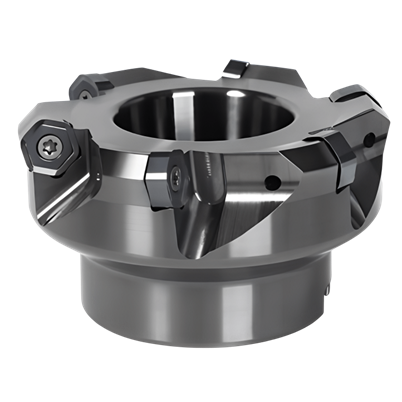

NC45HX Series 45° Face Milling Cutter Bodies
Overview
The NC45HX series is a high‑performance line of 45° entering‑angle face milling cutters, designed for productive and reliable plane‑milling operations. The 45° approach angle reduces radial cutting forces, ensuring smooth cutting even at high feed rates. These cutter bodies are compatible with the HNGX0906 double‑sided 12‑edge indexable inserts, giving you up to 12 cutting edges per insert – a cost‑effective solution for high‑volume face milling.
Key Benefits
12‑edge economy – Designed for HNGX0906 inserts with 12 usable cutting edges, significantly lowering cost per edge.
45° entering angle – Minimises radial forces, improves process stability, and allows higher feed rates.
Rigid construction – Robust body design resists deflection and vibration, extending tool life and producing better surface finishes.
Optimised chip space – Large flute cavities ensure reliable chip evacuation, especially at high feed rates.
Internal coolant option – Select models include through‑coolant holes for improved chip control and thermal management.
Wide material range – Suitable for steel, stainless steel, cast iron, and many other workpiece materials.

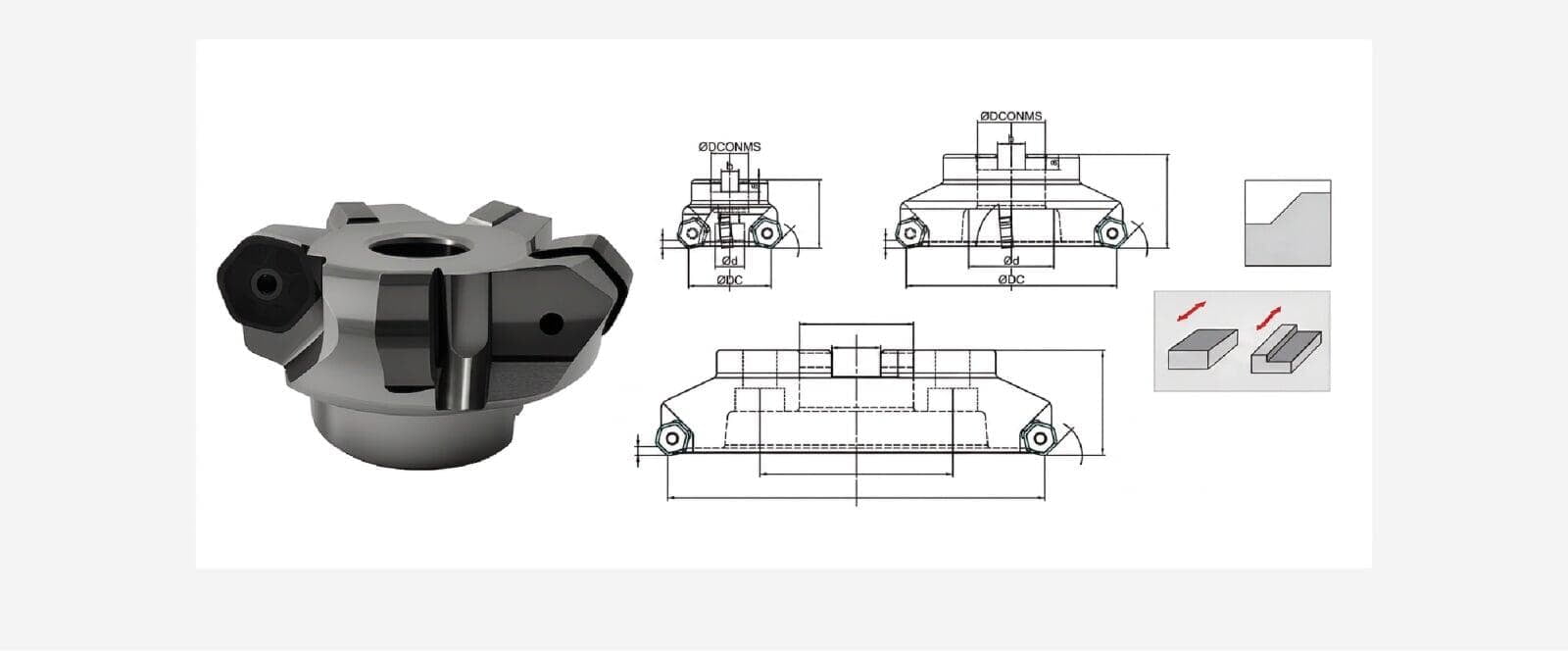

Available Sizes
| Designation | Diameter (mm) | Bore (mm) | Teeth (CICT) |
|---|---|---|---|
| NC45HX 0906‑50‑22‑4T | 50 | 22 | 4 |
| NC45HX 0906‑63‑22‑5T | 63 | 22 | 5 |
| NC45HX 0906‑80‑27‑6T | 80 | 27 | 6 |
| NC45HX 0906‑100‑32‑7T | 100 | 32 | 7 |
| NC45HX 0906‑125‑40‑7T | 125 | 40 | 7 |
| NC45HX 0906‑160‑40‑10T | 160 | 40 | 10 |
| NC45HX 0906‑200‑60‑12T | 200 | 60 | 12 |
| NC45HX 0906‑250‑60‑14T | 250 | 60 | 14 |
Accessories supplied: M4.0‑003 screws and T15 wrenches (quantity matches the number of teeth).
Typical Applications
Face milling (plane milling)
Slot milling
Chamfering
Ramp milling
Plunge milling (progressive)
What’s in the Box
NC45HX cutter body × 1
Mounting screws (M4.0‑003) – one per tooth position
T15 wrench × 1
Note: Inserts are sold separately.
