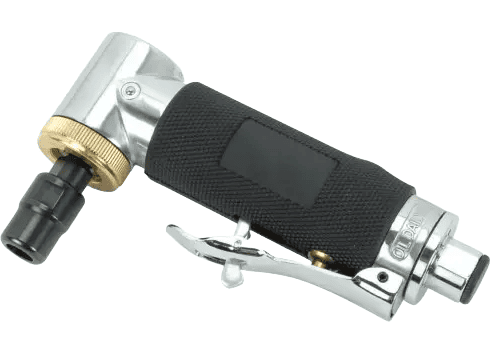

High-Performance Air Angle Die Grinder (18,000 RPM)
Precision Right-Angle Grinding for Aerospace & Industrial Applications
Technical Specifications
▸ Collet Size: 6mm (1/4")
▸ Operating Speed: 18,000 RPM free speed
▸ Dimensions: 135mm length | 0.65kg weight
▸ Air Requirements:
Consumption: 0.42 m³/min
Pressure: 90 PSI (6.3 kg/cm²)
Inlet: 1/4" NPT | Hose: 5mm ID
▸ Ergonomics:Vibration: <2.5 m/s²
Noise Level: 95 dBA
▸ Packaging: 20 units/carton (14.5kg | 0.95 cu ft)
Key Features
✔ Right-Angle Head Design - Accesses confined spaces unreachable by inline tools
✔ Vibration-Reduced Operation - Rubber sleeve improves control and comfort
✔ High-Speed Performance - 18,000 RPM for efficient material removal
✔ Lightweight Construction - Only 0.65kg reduces operator fatigue
Professional Applications
• Deburring aircraft engine components
• Finishing composite panel edges
• Grinding in wing box and bulkhead areas
• Surface preparation in landing gear bays
Ordering Information
Ships ready for immediate use
Bulk pricing available
[Request Quote] | [View Accessories]
Compact Product Listing
18K RPM Angle Die Grinder - 6mm collet, 135mm body, 0.65kg. Rubberized anti-vibration grip.
(Ideal for precision grinding in tight aircraft and industrial spaces.)
