Product Description: High-Efficiency Machining (HEM) Kit – CAT40
Maximize Material Removal and Minimize Cycle Times
Equip your CNC milling center for peak performance with our comprehensive High-Feed Machining Kit. Specifically designed for CAT40 spindles, this kit provides everything you need to transition from traditional roughing to modern, high-efficiency machining strategies. By combining rigid tool holders with industry-leading high-feed mill bodies and a substantial supply of durable inserts, this kit delivers unmatched productivity, reduced machining time, and extended tool life.
Equip your CNC milling center for peak performance with our comprehensive High-Feed Machining Kit. Specifically designed for CAT40 spindles, this kit provides everything you need to transition from traditional roughing to modern, high-efficiency machining strategies. By combining rigid tool holders with industry-leading high-feed mill bodies and a substantial supply of durable inserts, this kit delivers unmatched productivity, reduced machining time, and extended tool life.
Kit Includes:
- (1) 3/4" C075-075-180-2T High Feed Mill: Ideal for small-diameter roughing, ramping, and helical interpolation. (2-flute design).
- (1) 1.0" C010-010-180-3T High Feed Mill: The versatile workhorse for general-purpose face milling and plunging. (3-flute design).
- (1) 1-1/4" C125-125-200-4T High Feed Mill: Designed for increased feed rates and stability in medium-duty roughing applications. (4-flute design).
- (1) 1-1/2" C150-150-200-4T High Feed Mill: High-performance cutter for maximum stock removal and large-area facing. (4-flute design).
- (2) CAT40 Dual Contact Hydraulic End Mill Holders: Precision-ground holders engineered specifically for high-feed milling cutters, ensuring concentric and vibration-free operation at high metal removal rates.
- (2)CAT40 End Mill Holders: High quality end mill holders designed to hold the 1-1/4 and 1-1/2 high feed mills.
- (2) 2PCS Hydraulic Holder Sleeves: 3/4, and 1" Sleeve for Hydraulic Holder
- (40) Inserts (Total):
- (20) WNMX 06 Inserts: Includes 10pcs for immediate use and 10pcs backup. Designed for smaller cutters (3/4" & 1.0").
- (20) WNMX 09 Inserts: Includes 10pcs for immediate use and 10pcs backup. Designed for larger cutters (1-1/4" & 1-1/2").
Key Features & Benefits:
- Comprehensive Coverage: This kit covers a wide range of applications from slotting and ramping to face milling, allowing you to handle diverse parts without searching for individual tools.
- High-Feed Geometry: The specialized cutter bodies feature a low entering angle that directs cutting forces axially into the spindle. This allows for extremely high feed rates, drastically reducing cycle times compared to conventional milling.
- Ready-to-Run Setup: With four dedicated CAT40 holders included, these tools are ready to load into your tool magazine immediately. The holders are precision-matched to maximize the performance of the high-feed cutters.
- Substantial Insert Supply: The inclusion of 40 total inserts (20 of each size) ensures you have a large inventory for production runs. The WNMX-style inserts feature a strong cutting edge and multiple cutting indexes for excellent economy.
- Versatile Application: Perfect for roughing all types of materials, including steel, stainless steel, and cast iron. The design is optimized for plunging, ramping, contouring, and helical interpolation.
Applications:
Ideal for job shops, mold and die, and production manufacturing environments looking to implement High-Efficiency Milling (HEM) and Trochoidal Milling paths.
Ideal for job shops, mold and die, and production manufacturing environments looking to implement High-Efficiency Milling (HEM) and Trochoidal Milling paths.
Upgrade your machining process today with this all-in-one, productivity-boosting kit.

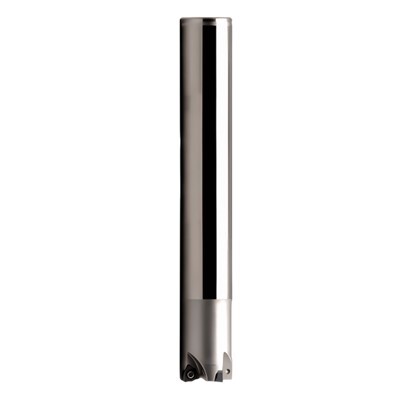

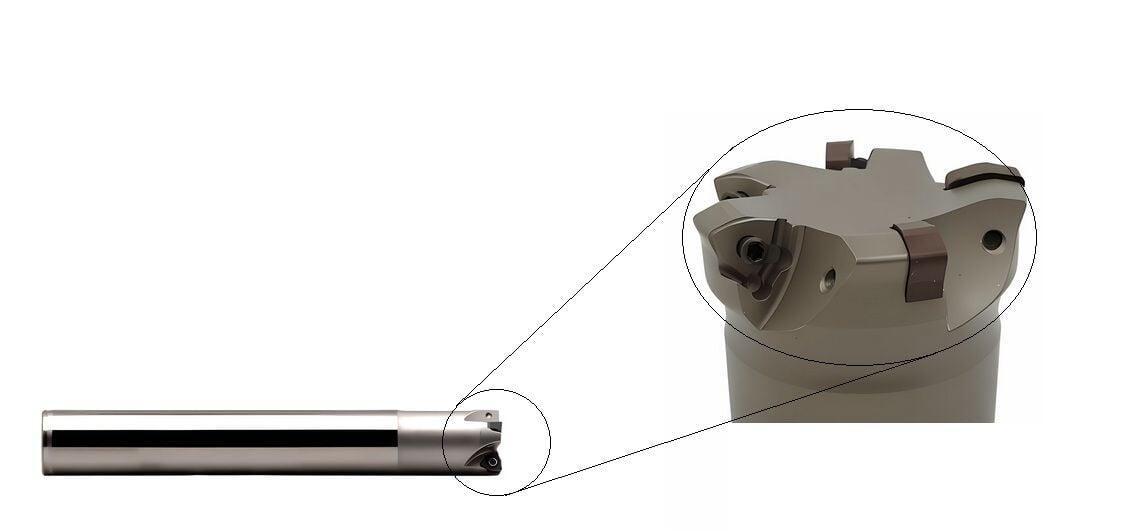

3/4" C075-075-180-2T High Feed Mill - 180mm OAL
1.0" C010-010-180-3T High Feed Mill - 180mm OAL
1-1/4" C125-125-200-4T High Feed Mill- 200mm OAL
1-1/2" C150-150-200-4T High Feed Mill- 200mm OAL
1.0" C010-010-180-3T High Feed Mill - 180mm OAL
1-1/4" C125-125-200-4T High Feed Mill- 200mm OAL
1-1/2" C150-150-200-4T High Feed Mill- 200mm OAL
Non-returnable
$899.00
