Solid carbide end mill suitable for milling stainless steel. steels. and super alloys
$62.94
Customize
Grade and Coating

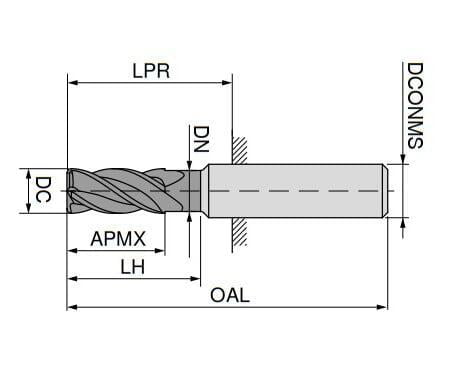

High Performance Coating Mounting spigot diameter / DCONMS - d 1 Dia
8.00 Cutting diameter / DC
7.70 Depth of cut maximum / APMX - l 2 LOC
19.00 Peripheral effective cutting edge count / ZEFP - Flutes
4.00 Corner radius / RE / R
0.20 Protruding length / LPR
27.00 Head length / LH
25.00 DN
7.5 Product Details
Specifications
Solid Carbide End Mill
- Grade and Coating:High Performance Coating
- Peripheral effective cutting edge count / ZEFP - Flutes:4
