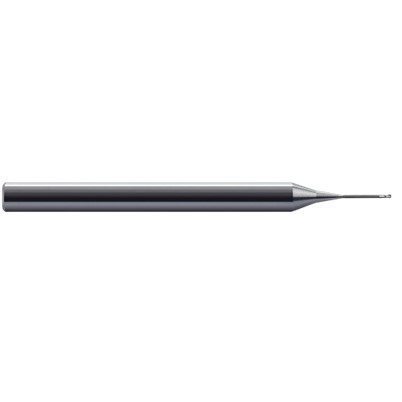

Ultra High Performance Micro Solid Carbide HPC Ball Nose End Mill
$66.66
Customize
Grade and Coating

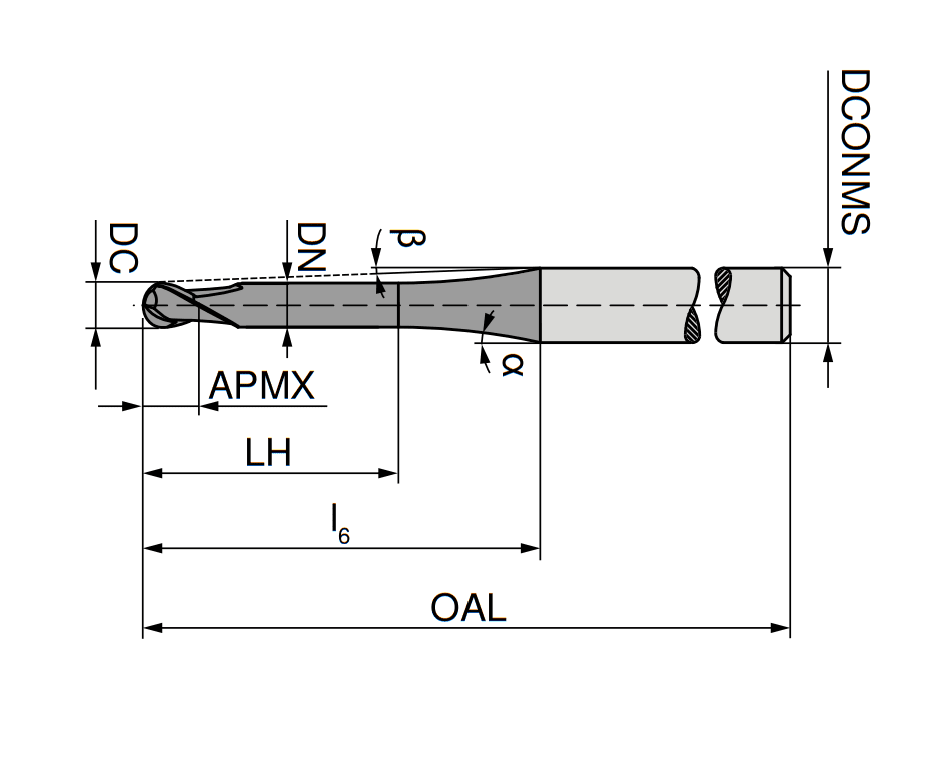

High Performance Coating Mounting spigot diameter / DCONMS - d 1 Dia
0.118 Overall length / OAL - L
1.969 Cutting diameter / DC
0.008 Depth of cut maximum / APMX - l 2 LOC
0.005 Peripheral effective cutting edge count / ZEFP - Flutes
2.00 Head length / LH
0.017 DN
0.006 Product Details
Specifications
Solid Carbide End Mill
- Cutting diameter / DC:0.008
- Mounting spigot diameter / DCONMS - d 1 Dia:0.118
- Grade and Coating:High Performance Coating
- Peripheral effective cutting edge count / ZEFP - Flutes:2
- Head length / LH:0.017
- DN:0.006
