Solid carbide end mill suitable for milling stainless steel. steels. and super alloys
$271.19
Customize
Grade and Coating

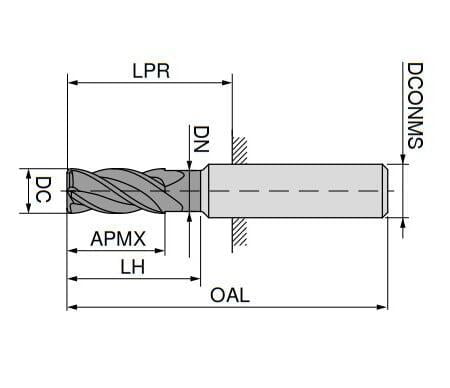

High Performance Coating Mounting spigot diameter / DCONMS - d 1 Dia
18.00 Cutting diameter / DC
18.00 Depth of cut maximum / APMX - l 2 LOC
36.00 Peripheral effective cutting edge count / ZEFP - Flutes
4.00 Corner radius / RE / R
0.32 Protruding length / LPR
69.00 Head length / LH
67.00 DN
17.5 Product Details
Specifications
Solid Carbide End Mill
- Grade and Coating:Blank
- Peripheral effective cutting edge count / ZEFP - Flutes:4
