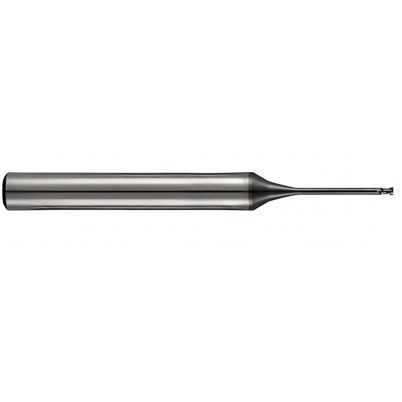

Ultra High Performance Micro Solid Carbide HPC End Mill
$52.75
Customize
Grade and Coating

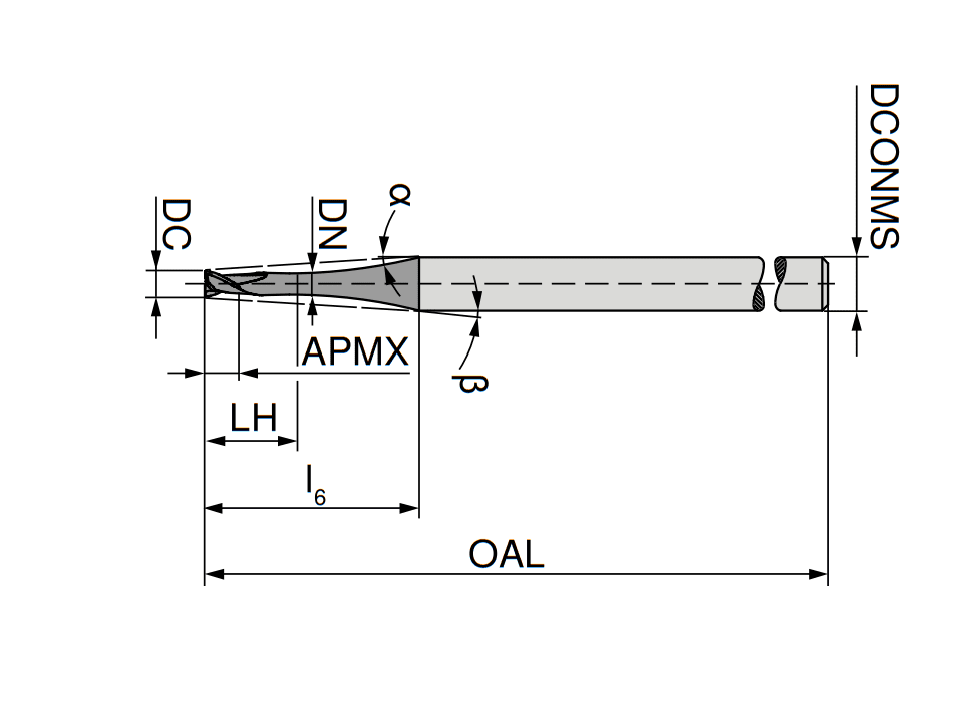

High Performance Coating Mounting spigot diameter / DCONMS - d 1 Dia
0.118 Overall length / OAL - L
1.496 Cutting diameter / DC
0.031 Depth of cut maximum / APMX - l 2 LOC
0.019 Peripheral effective cutting edge count / ZEFP - Flutes
2.00 Head length / LH
0.069 DN
0.025 Product Details
Specifications
Solid Carbide End Mill
- Cutting diameter / DC:0.031
- Mounting spigot diameter / DCONMS - d 1 Dia:0.118
- Grade and Coating:High Performance Coating
- Peripheral effective cutting edge count / ZEFP - Flutes:2
- Depth of cut maximum / APMX - l 2 LOC:0.019
- Head length / LH:0.069
- DN:0.025
