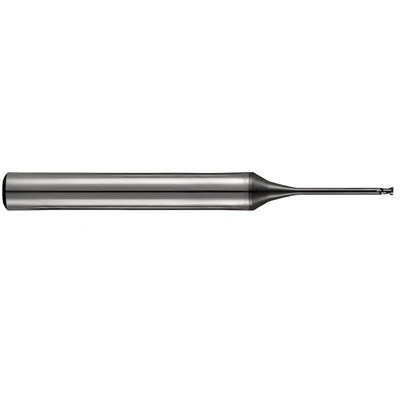

Ultra High Performance Micro Solid Carbide HPC End Mill
$45.28
Customize

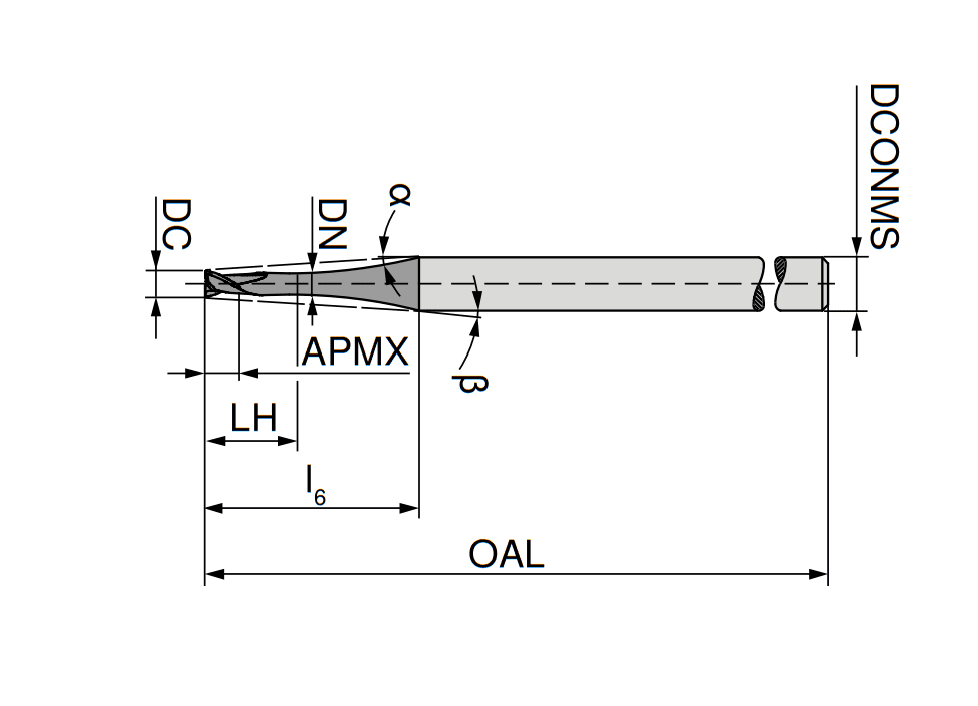

Grade and Coating
High Performance Coating Mounting spigot diameter / DCONMS - d 1 Dia
0.118 Overall length / OAL - L
1.496 Cutting diameter / DC
0.067 Depth of cut maximum / APMX - l 2 LOC
0.04 Peripheral effective cutting edge count / ZEFP - Flutes
2.00 Head length / LH
0.147 DN
0.054 Product Details
Specifications
Solid Carbide End Mill
- Cutting diameter / DC:0.067
- Mounting spigot diameter / DCONMS - d 1 Dia:0.118
- Grade and Coating:High Performance Coating
- Peripheral effective cutting edge count / ZEFP - Flutes:2
- Head length / LH:0.147
- DN:0.054
