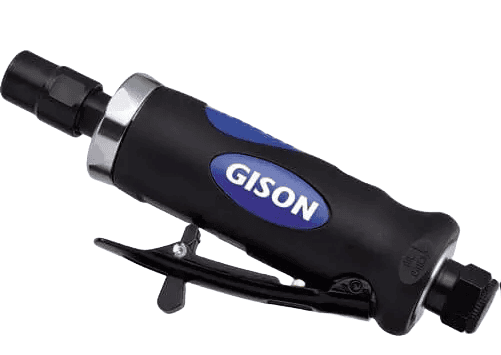

Composite Air Die Grinder (20,000 RPM)
Precision Pneumatic Tool for Aerospace Composite Work
Key Features
✈ Ultra-Light Composite Body - Only 0.4kg for fatigue-free operation
⚡ High-Speed Performance - 20,000 RPM for precision material removal
🛡️ Safety Lever - Prevents accidental starts in sensitive areas
📐 Low Run-Out - <2.5 m/s² vibration for flawless surface finishing
🔧 6mm (1/4") Collet - Standard aerospace bit compatibility
Technical Specifications
• Speed: 20,000 RPM (free speed)
• Dimensions: 150mm (compact for tight spaces)
• Air System:
1/4" NPT inlet | 5mm hose
0.42 m³/min @ 90 PSI (6.3 kg/cm²)
• Noise/Vibration: 80 dBA | <2.5 m/s²
• Packing: 20 units/carton (11kg)
Aerospace Applications
✔ Composite panel trimming
✔ Radome surface finishing
✔ Deburring aircraft components
✔ Precision weld grinding
✔ Interior cabin polishing
Why Choose ?
✅ Composite Body - Non-conductive & corrosion-resistant
✅ Ergonomic Design - Reduces operator fatigue during extended use
✅ Precision Control - Ideal for delicate composite materials
Package Includes:
Die grinder body
(Bits/accessories sold separately)
Engineered for Aircraft Maintenance Perfection
[Request Quote] | [Tech Specs] | [Bulk Order]
Short Version:
Aircraft Die Grinder - 20,000 RPM, 0.4kg composite body. Safety lever & low vibration for composite work.
(Optimized for A&P technicians - highlights composite-friendly features and aerospace applications.)
