Solid carbide end mill suitable for milling stainless steel. steels. and super alloys
$87.68
Customize
Grade and Coating

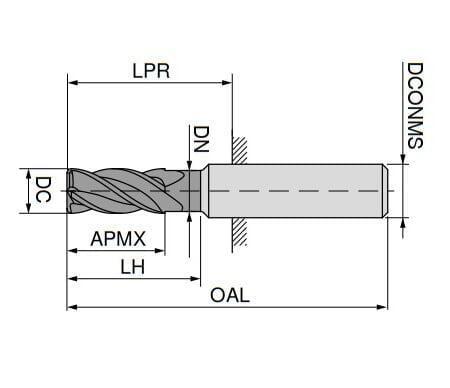

High Performance Coating Mounting spigot diameter / DCONMS - d 1 Dia
10.00 Cutting diameter / DC
8.70 Depth of cut maximum / APMX - l 2 LOC
22.00 Peripheral effective cutting edge count / ZEFP - Flutes
4.00 Corner radius / RE / R
0.32 Protruding length / LPR
40.00 Head length / LH
38.00 DN
8.4 Product Details
Specifications

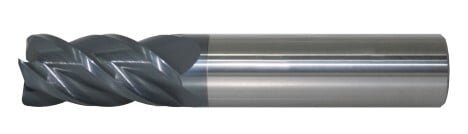

Solid Carbide End Mill
- Grade and Coating:High Performance Coating
- Peripheral effective cutting edge count / ZEFP - Flutes:4
