Multi function Drill-Turn-Bore Tool
CAP Multi-Function Turning Tool | Drill, Turn, & Bore in One Setup
Subtitle: Eliminate Tool Changes. The Complete Turning Solution for CNC Lathes & Turning Centers.
Short Description (Product Overview):

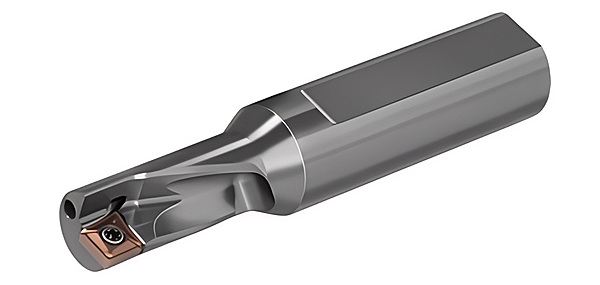

Maximize your turning center's uptime. The TCAP Multi-Function Tool is engineered specifically for CNC lathes to consolidate drilling, external turning, and precision boring into a single, rock-solid tool station. Slash cycle times, simplify setups, and achieve seamless finishes on complex turned parts—all without a single tool change.
Key Features & Benefits
1. TURNING-CENTER SPECIFIC VERSATILITY
True 3-in-1 Machining: Perform complete part machining—from center drilling and facing to OD contouring and ID boring—using one tool position on your turret.
Drastically Reduce Cycle Times: Eliminate the dead time between tool changes. Move from drilling to turning to boring in one continuous operation.
Simplify Setup & Offsets: One tool, one geometry offset. Dramatically reduces setup time and potential for error, especially on complex jobs.
2. ENGINEERED FOR LATHE RIGIDITY & FINISH
Turret-Optimized Design: Built with a shorter, more robust profile for maximum stability in a lathe turret, minimizing deflection during heavy turning cuts.
Ultra-Precise Boring Adjustment: Integrated micrometer-style adjustment allows for fine-tuning of boring diameters to hold tight tolerances directly at the machine.
Superior Surface Finish: Optimized insert geometry and tool rigidity work together to produce exceptional surface quality, reducing or eliminating secondary operations.
3. COST & TURRET SPACE SAVINGS
Free Up Turret Stations: One TCAP tool can replace dedicated drilling, turning, and boring holders. Use the freed-up stations for grooving, threading, or other tools.
Reduce Tooling Inventory: Consolidate your tool crib. Invest in one versatile system instead of multiple single-purpose holders.

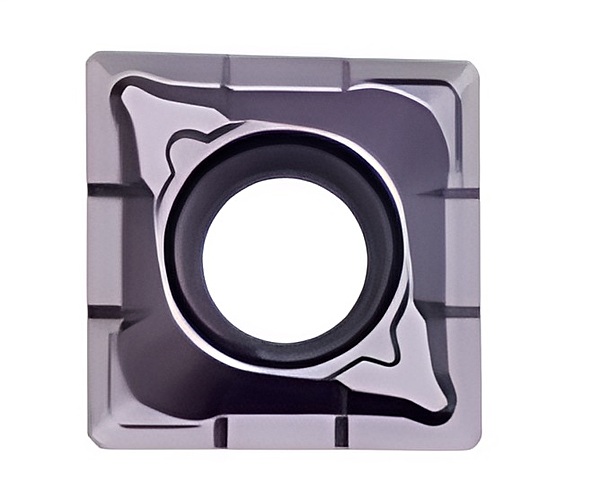

Uses Standard Turning Inserts: Compatible with common, cost-effective CNMG, VNMG, and TNMG-style inserts (sold separately) for easy sourcing and management.
4. BUILT FOR PRODUCTION DURABILITY
Through-Tool Coolant Ready (Optional): Available with internal coolant ports to blast chips out of deep holes and extend tool life in demanding materials.
Sealed & Protected: Advanced seals guard the adjustment mechanism against coolant, chips, and dust, ensuring reliable performance shift after shift.
